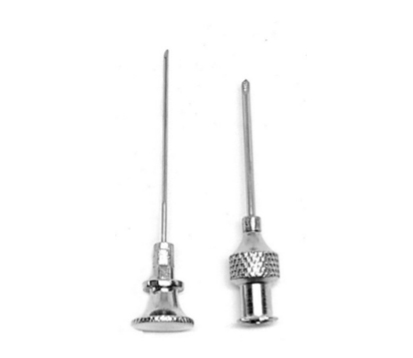

Bone Marrow Osgood Needle

- For Bone Marrow Biopsy or transfusion
- Bone Marrow Needle has Round Luer lock hub.
- Sharp pointed cannula.
- Fitted stylet with matched bevel point.
- Supplied in paper pouch pack & Unsterile.
- Intended use of Bone Marrow Aspiration Needle: For treatment use.
Code | Size |
---|---|
97-54161 | 16Gx35mm |
97-54162 | 16Gx50mm |
97-54787 | 18Gx35mm |
97-54182 | 18Gx50mm |

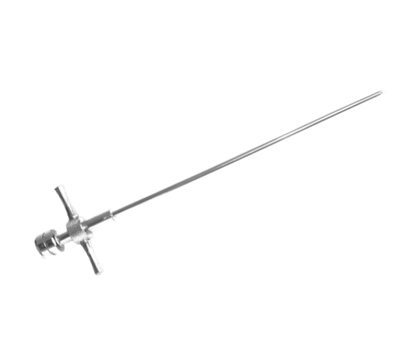

Bone Marrow Biopsy Jamshidi


Pyramidal Trocar

Taper point
Bone marrow biopsy needle designed for puncture and extraction of histological tissue from the iliac crest.
- Sturdy metal device for better Insertion and Withdrawal
- Three part Device: Needle, Stylet, Obturator
- Ergonomic handle grip to distribute pressure in an optimal way applied by the operator.
- Device is offered in two tip styles :
- Classical tapered tip with extended chisel stylet.
- Tapered diamond cut tip with pyramidal trocar tip.
- Marked obturator to measure and retrieve sample.
- Luer lock connection for syringe.
Code | Diameter | Length | Compatible Gauge |
---|---|---|---|
97-5908 | 4.0 mm | 100/150mm | 8G |
97-5910 | 3.5 mm | 100/150mm | 10G |
97-5911 | 3.0 mm | 100 mm | 11G |
97-5913 | 2.4 mm | 100 mm | 13G |

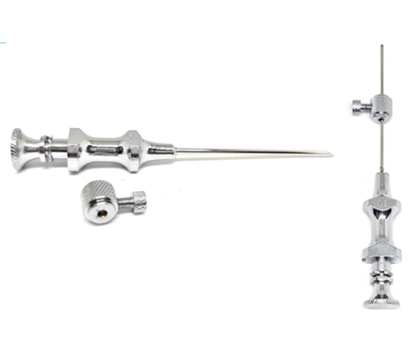

Bone Marrow Aspiration Needle

- Large spool Luer Hub for secure grip
- Sharp pointed cannul amade from AISISS304
- Adjustable stopper for advanced depth control
- Supplied Unsterile
- Intendeduse: Formedical procedures.
Code/Length | Length | Compatible Gauge |
---|---|---|
97-1450 | 50mm | 14G |
97-1650 | 50mm | 16G |
97-1850 | 50mm | 18G |
